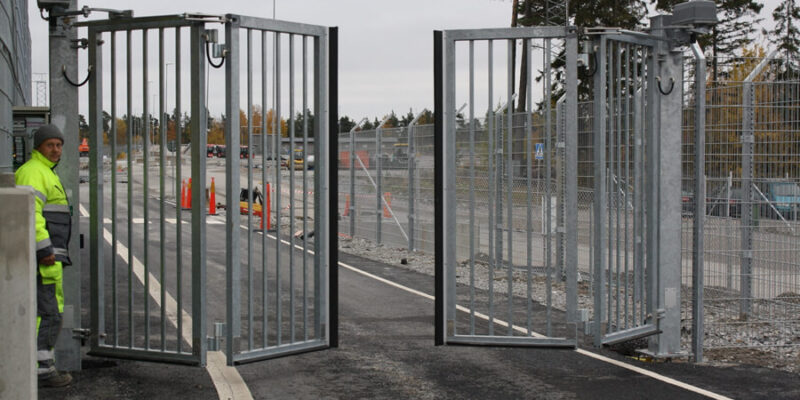

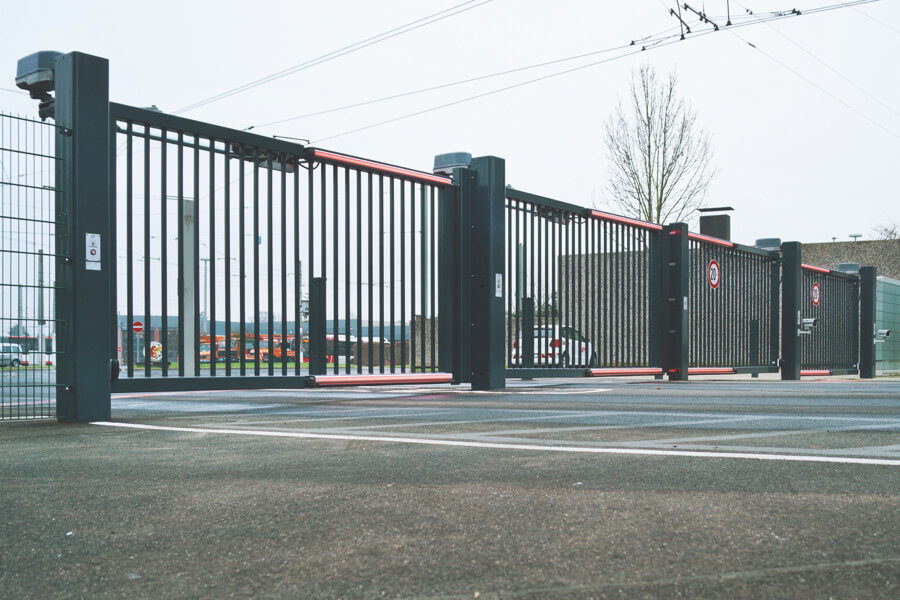

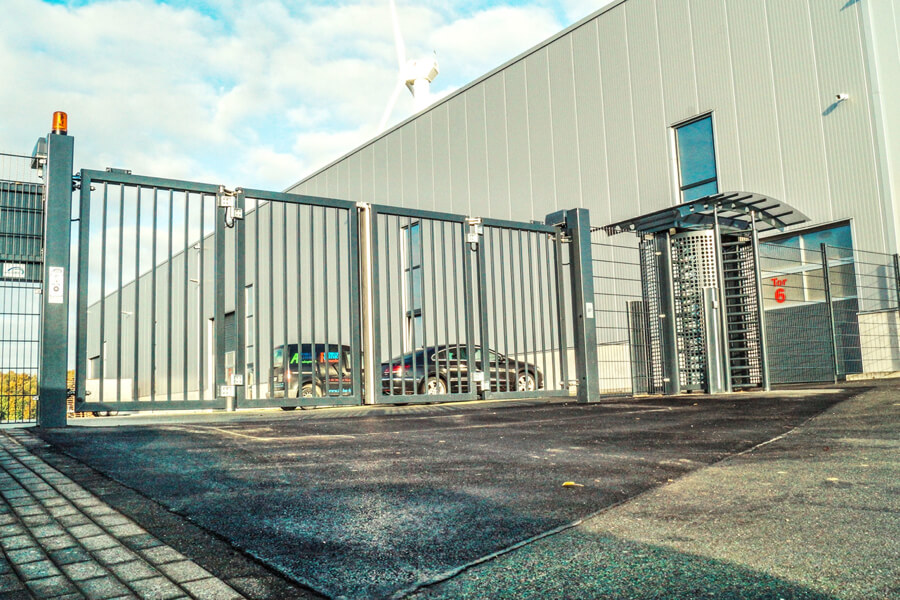

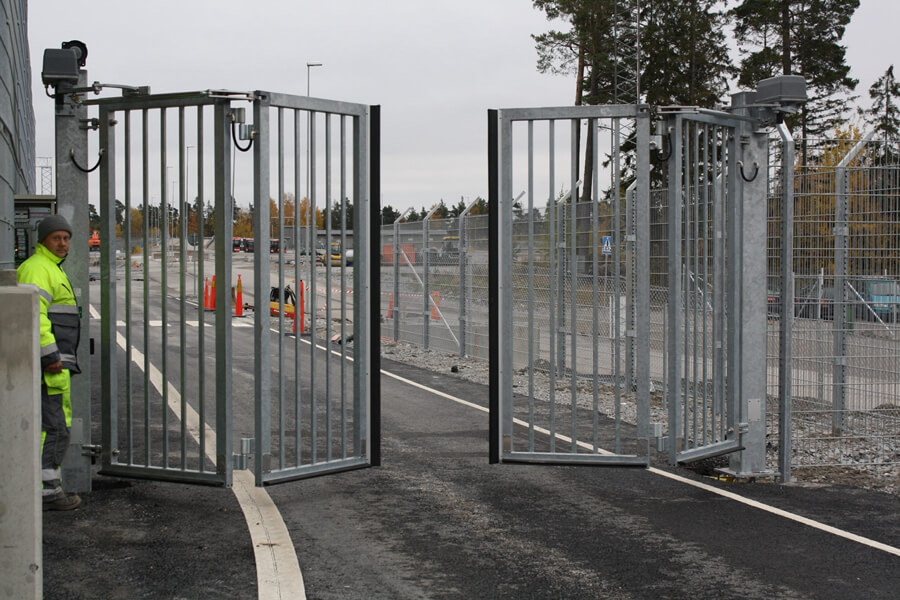

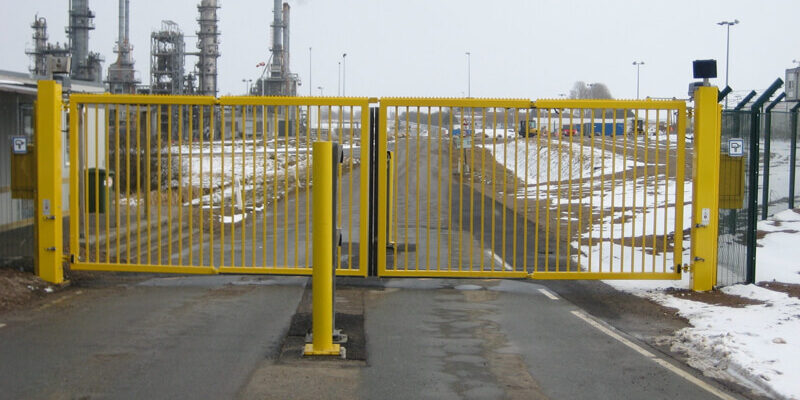

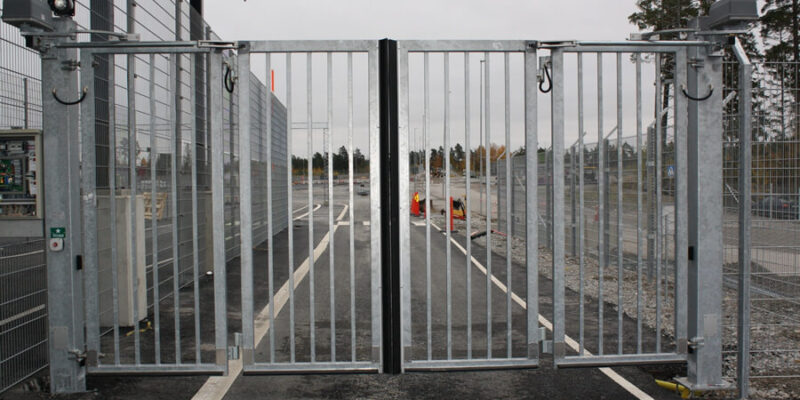

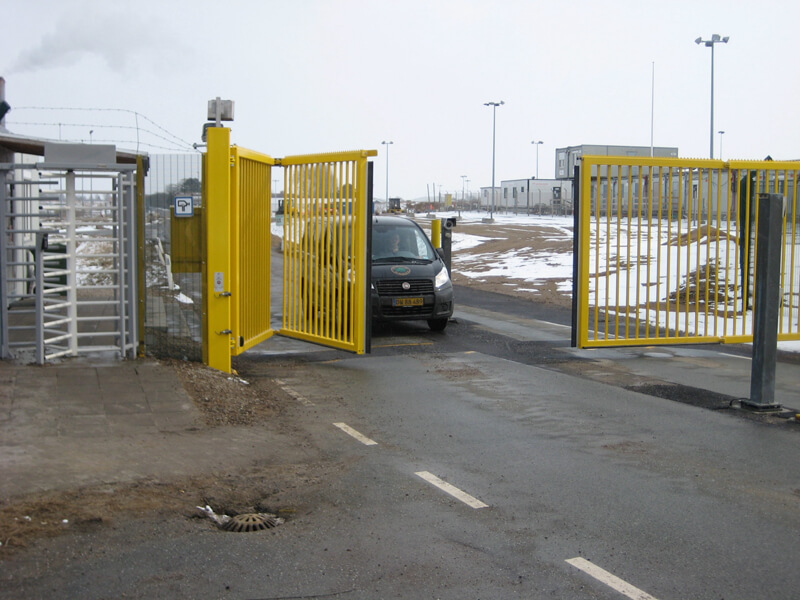

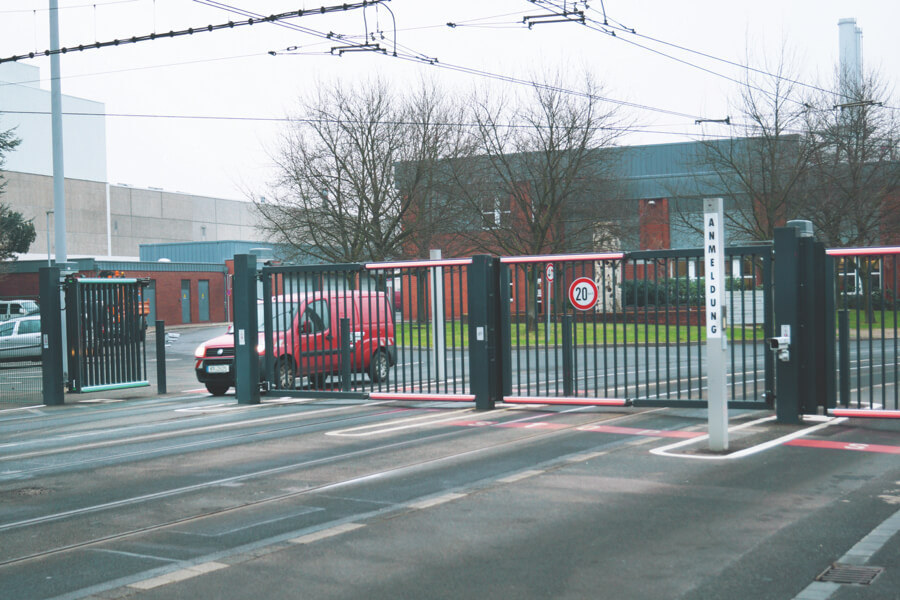

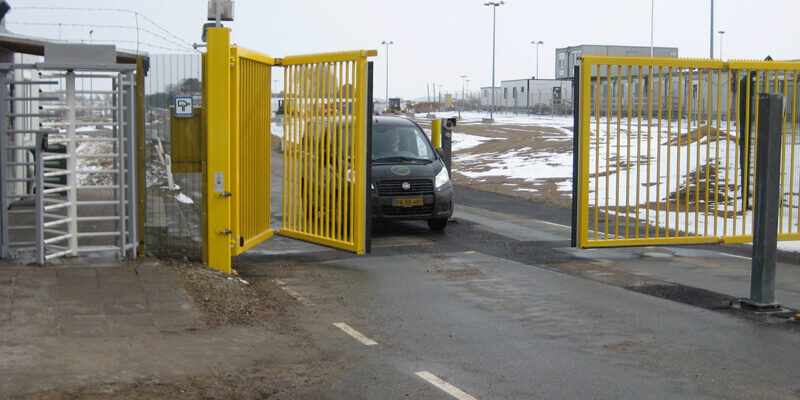

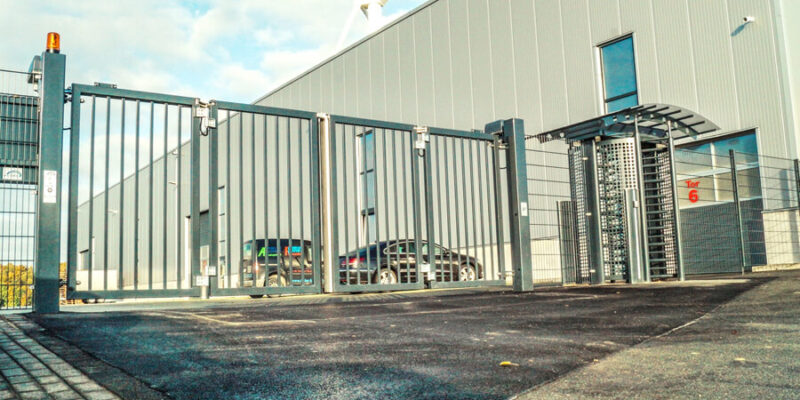

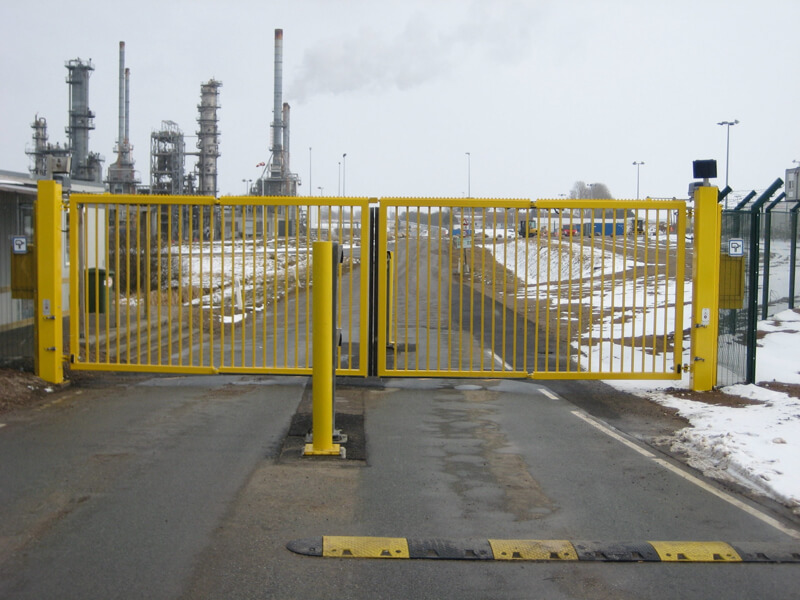

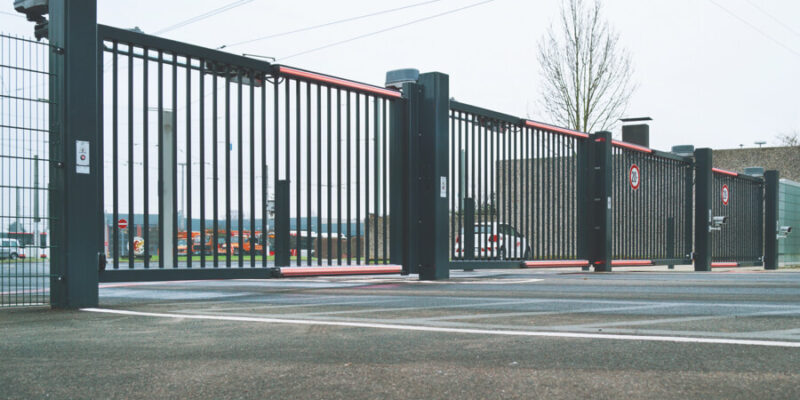

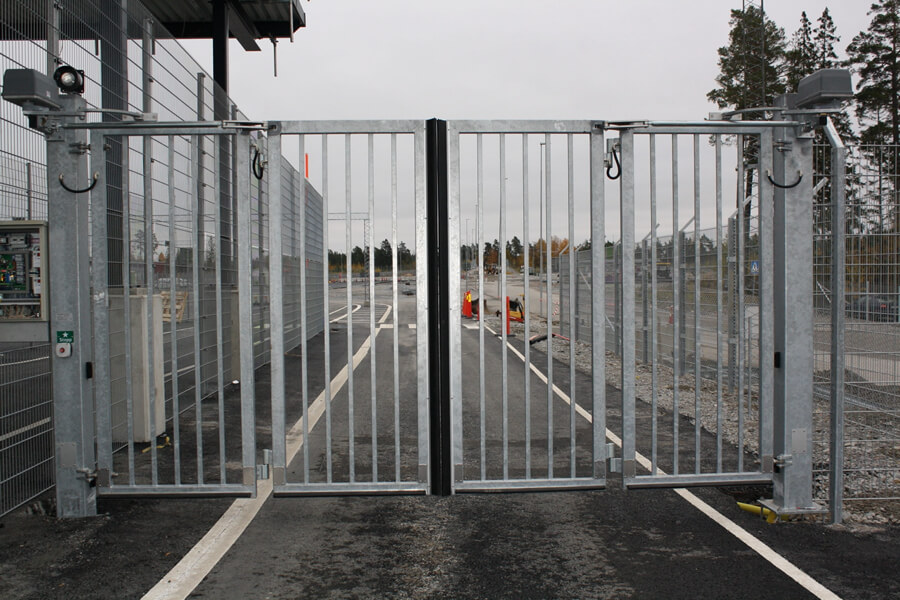

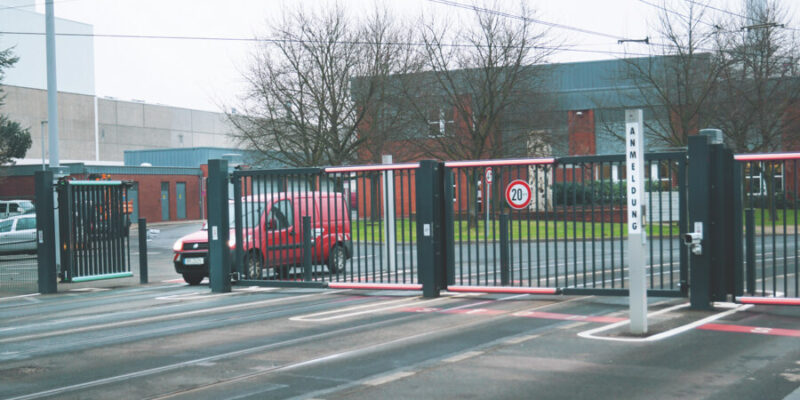

EntraQuick® I & II. The smart combination of gate and barrier. The EntraQuick®, quick folding gate, is a type tested, trackless, bi hinged gate providing effective access control to facilities requiring efficient, secure traffic control. Its opening and closing speed of 0.5 m/s ensures proper management of traffic flows while keeping the access control point safe and secured.
TECHNICAL INFORMATION
Model | EntraQuick® I |
Gate height | 2.050 mm, 2.450 mm* |
Clear opening width | 3.000 – 6.000 mm in 500 mm increments |
Infill | Bar infill RHS 30/20 mm |
Foundation | Top edge of foundation 200 mm below finished floor level (Standard), other lowerings possible |
Drive unit | One or two knee-joint drives (depending on model) |
Control unit | Multifunctional, automatic control WE-Tronic II with integrated frequency converter |
Interlocking | Via drive mechanism supported by interlocking of gate leaves through reception fork and in-feed roller |
Certification | TÜV type-tested according to DIN EN 13241-1 |
Options | See technical datasheet online |
