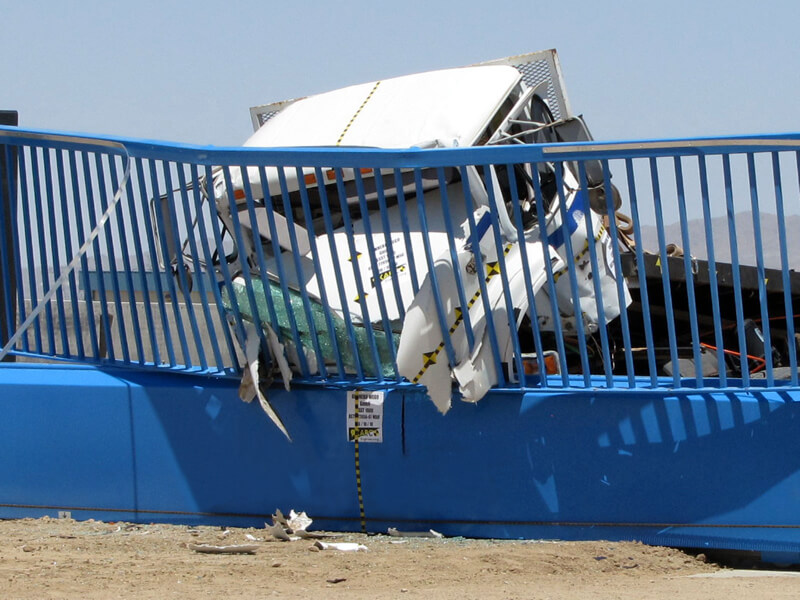

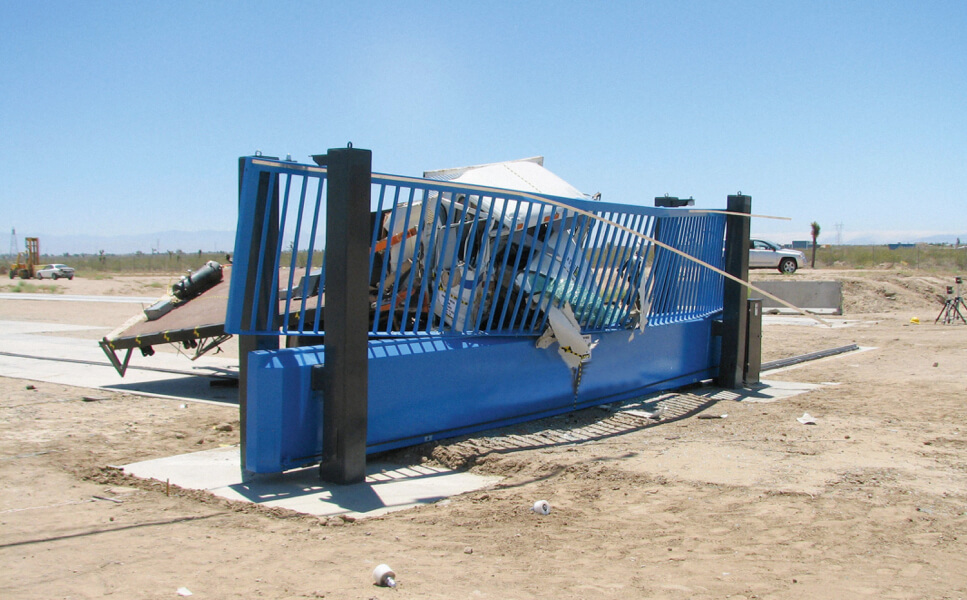

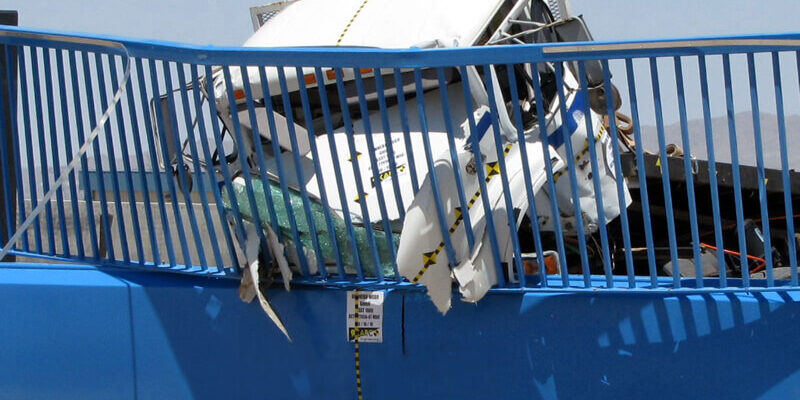

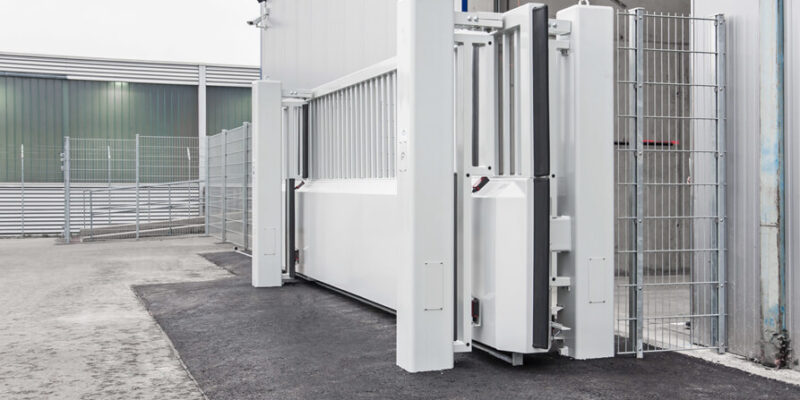

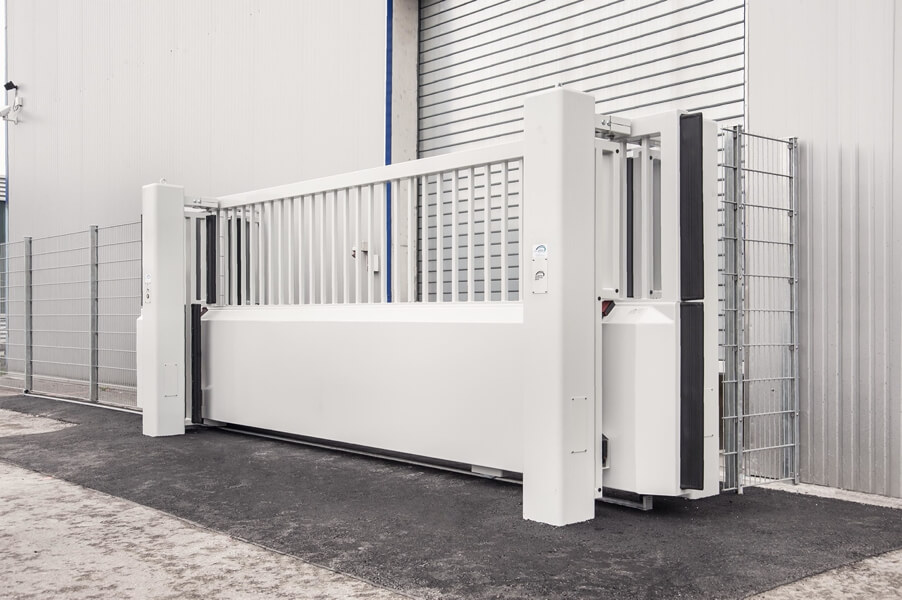

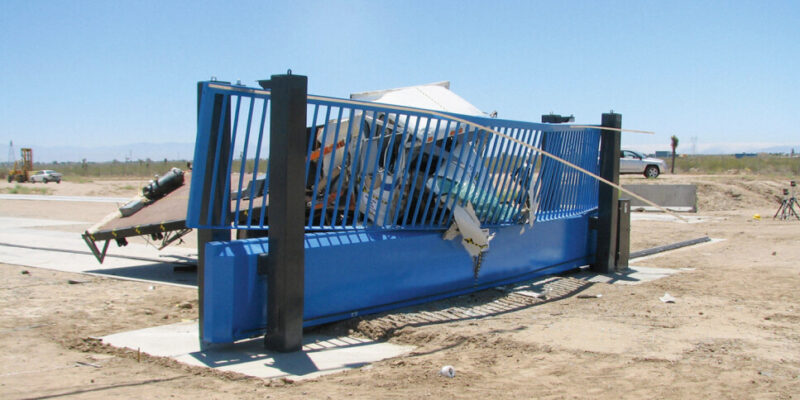

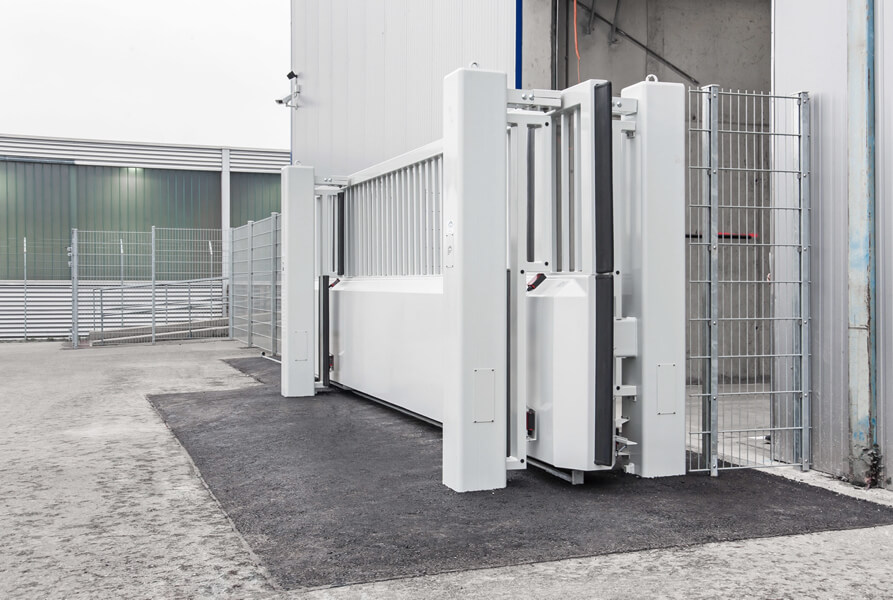

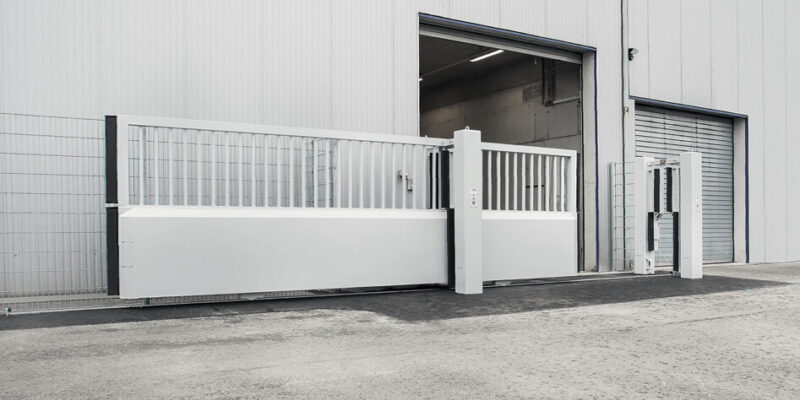

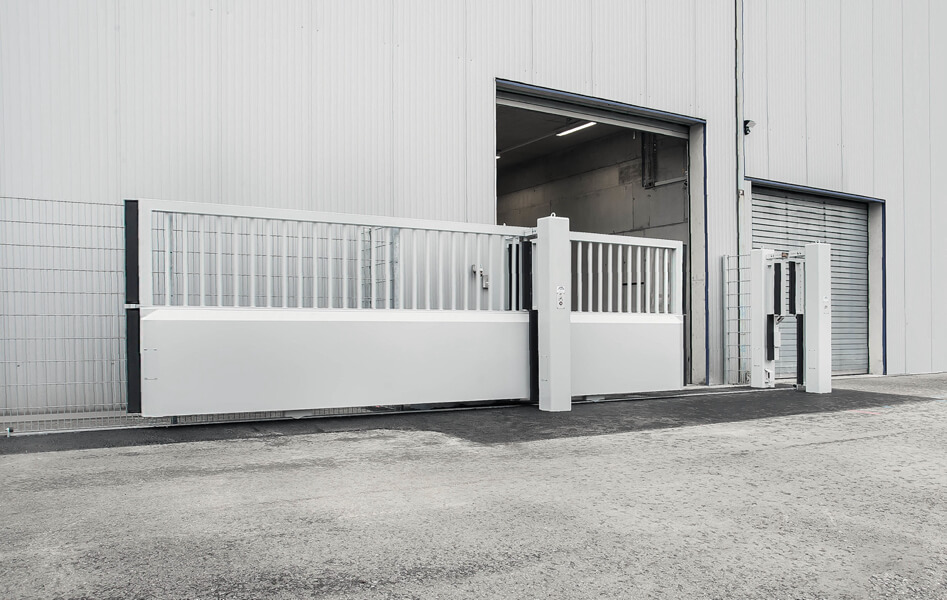

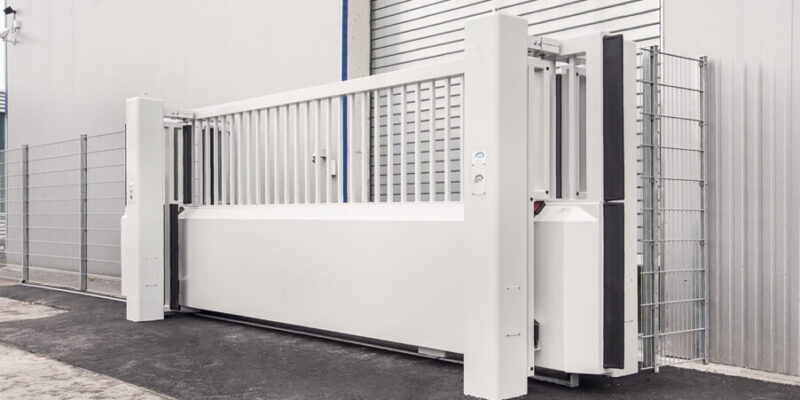

The Tracked Gate M50 is a sliding gate designed to stop all threats Despite its massive construction, it also features an extremely flat and shallow foundation. It can be adapted in height and fitted with anti-climbing devices to comply with site specific requirements.The Tracked Gate M50 features advanced technology characteristics and is fully compatible with all access control systems. It’s a flexible solution for perimeter security access control points that are vulnerable to hostile vehicle attacks. The TGM50 is crash tested in accordance with ASTM F2656; PAS68.
CERTIFICATIONS
TECHNICAL INFORMATION
Model | Tracked Gate M50 ASTM Version | Tracked Gate M50 PAS 68 Version |
Certification | ASTM F2656-07 M50/P1 tested with 7 m CWO | PAS 68 V/7500[N3]/80/90:0.0/4.3 tested with 7 m CWO |
Gate height | 2000 mm – 3000 mm | 2000 mm – 3000 mm |
Clear opening width | 3000 mm – 7000 mm in 1000 mm increments | 3000 mm – 7000 mm in 1000 mm increments |
EFO (optional) | Up to 0.8 m/s | Up to 0.8 m/s |
Operating speed | Up to 0.4 m/s | Up to 0.4 m/s |
Drive unit | Mounted on compensating frame | Mounted on compensating frame |
Installation depth | 500 mm incl. 100 mm road covering | 500 mm incl. 100 mm road covering |
Options | Anti-climbing device, type of gate infill | Anti-climbing device, type of gate infill |
